Assignment 4: Over-The-Air (OTA) Updates


Note: This is an optional chapter. If time is running short, you may skip directly to Assignment 5: ESP-NOW Chat Room.

In a real-world deployment, you won’t have physical access to a USB port to flash new firmware. Over-The-Air (OTA) updates allow you to download and install new firmware over a network connection like Wi-Fi.

How OTA works on the ESP32 in a nutshell: the flash holds two app slots instead of one. The device always runs from one of them (the active slot) and never overwrites it. A new firmware is written into the other, inactive slot, and only after it has been downloaded completely (and verified) does the device switch a small “boot from this slot” record and reboot into it. If anything goes wrong during the download, the old firmware is still intact and keeps running. With rollback enabled (possible, but not covered in this workshop), the bootloader goes one step further: if the new firmware doesn’t confirm that it works after booting, the bootloader falls back to the previous slot, so a bad update can’t leave the device bricked.

Keep reusing the project. Continue in the same project you provisioned in Assignment 3 — OTA needs a device that can already connect to your Wi-Fi. If that step stored credentials in NVS, those are reused; if not, the board joins the ESP32-WS workshop network directly. A second board, flashed with the server project, sits on that same network with a fixed address and hosts the update file. We’ll replace main/my_first_project.c again, but keep idf_component.yml as-is: it already pulls in led_strip from Assignment 2, and we’re about to need it again.

1. Partition Tables

To support OTA, the flash memory of the ESP32-C5 must be divided into specific regions called partitions. A typical OTA partition table includes:

When an OTA update occurs, the device downloads the new firmware into the inactive partition (whichever of ota_0/ota_1 isn’t currently running). If the download is successful, it updates the otadata partition to point there and reboots.

We define this layout in a file named partitions.csv in our project root:

# Name,   Type, SubType, Offset,  Size, Flags
nvs,      data, nvs,     ,        0x4000,
otadata,  data, ota,     ,        0x2000,
phy_init, data, phy,     ,        0x1000,
ota_0,    app,  ota_0,   ,        1500K,
ota_1,    app,  ota_1,   ,        1500K,

1500K per slot gives the OTA/TLS/Wi-Fi/LED code in this assignment comfortable headroom (the actual binary is roughly 1.1 MB) while still leaving two full slots on a 4 MB flash chip.

Tip: If you’d rather not edit CSV files by hand, the ESP-IDF VS Code extension ships GUI editors for both the partition table and NVS contents.

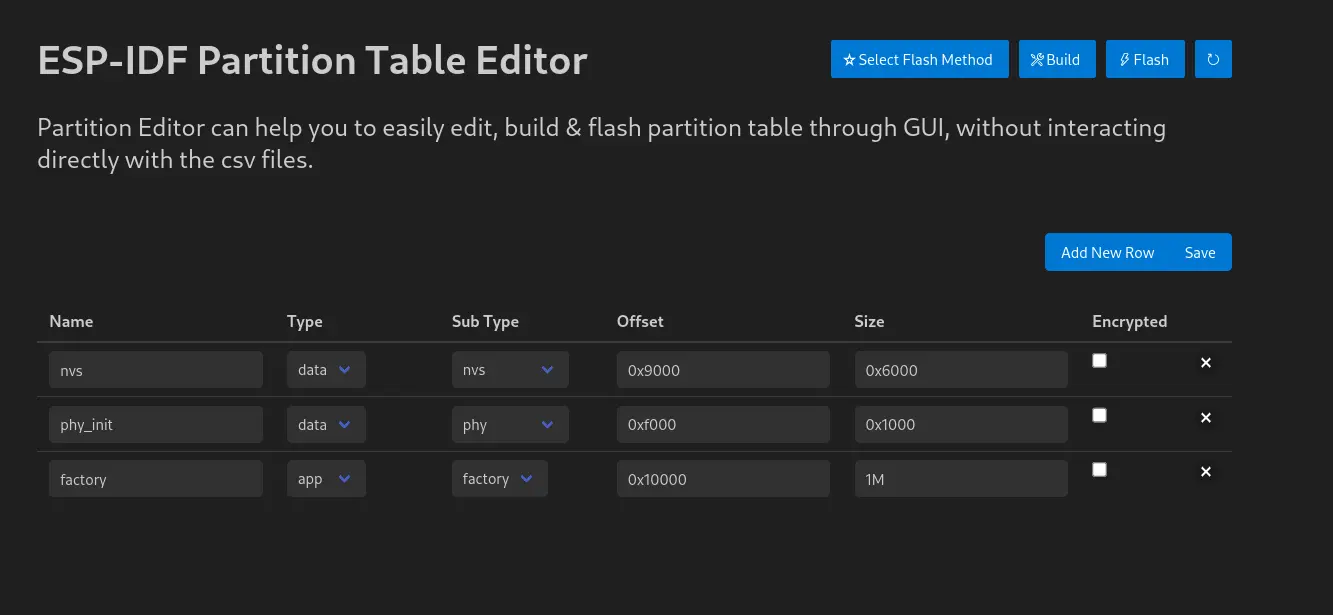

ESP-IDF Partition Table Editor

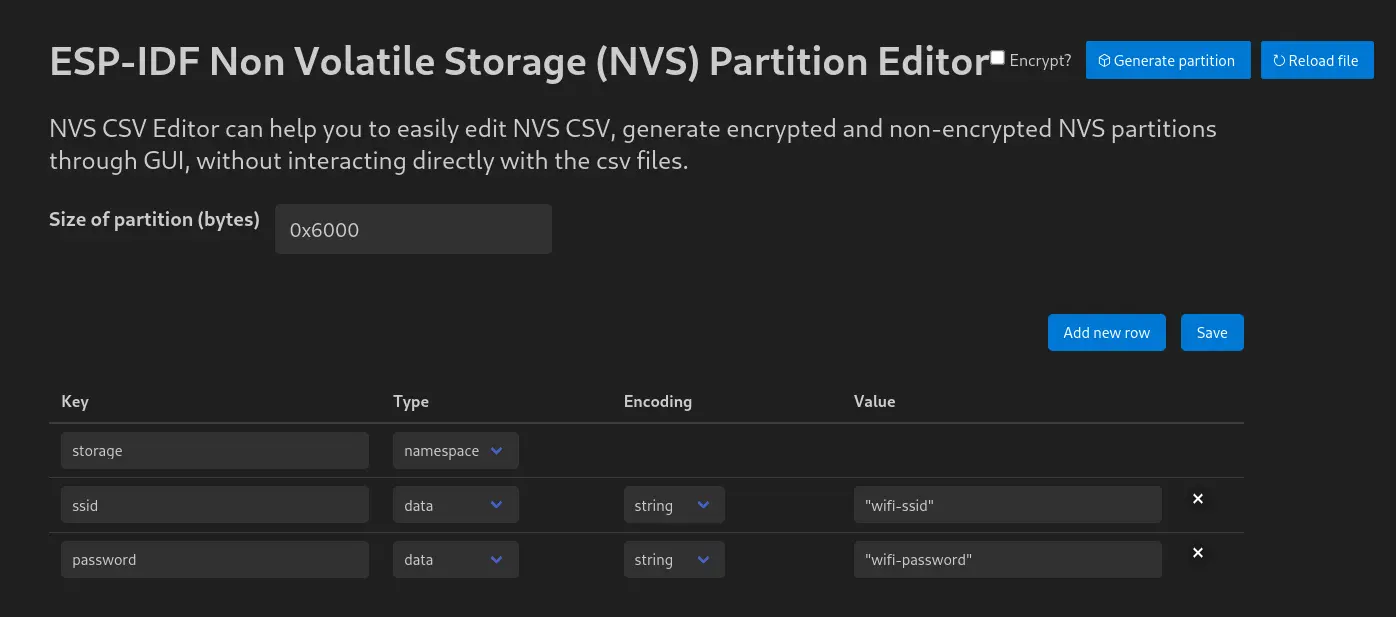

ESP-IDF NVS Partition Editor

2. Configuration via menuconfig

To tell ESP-IDF to use our custom partition table, run:

idf.py menuconfig

Navigate to:

Press Q to quit and Y to save.

If you’d rather not click through menuconfig for this, drop these settings into a sdkconfig.defaults file in your project root instead:

CONFIG_PARTITION_TABLE_CUSTOM=y
CONFIG_PARTITION_TABLE_CUSTOM_FILENAME="partitions.csv"
CONFIG_PARTITION_TABLE_FILENAME="partitions.csv"
CONFIG_ESPTOOLPY_FLASHSIZE_4MB=y
CONFIG_ESP_HTTPS_OTA_ALLOW_HTTP=y

CONFIG_ESP_HTTPS_OTA_ALLOW_HTTP lets esp_https_ota() download from the plain HTTP server on the companion board. Leave it off if you later point .url at a real HTTPS host.

3. Connecting a Button

Instead of updating itself the moment it boots, our board will wait for you to press a physical button before it starts downloading anything. This is both safer (no surprise downloads mid-demo) and a good excuse to learn basic GPIO input — and we’ll keep reusing this exact button in Assignments 5 and 6, so it’s worth wiring up carefully now.

Any simple 2-pin or 4-pin tactile push button works. On a 4-pin button, the two pins on each short side are internally connected to each other:

Tactile button pinout - the two pins on each side are internally connected

Wire it like this:

With the pull-down resistor in place, GPIO0 reads LOW while the button is released, and HIGH while it’s pressed (because the button then connects it straight to 3V3).

GPIO0 is also a boot-mode strapping pin on many ESP32 chips, but that only matters for the brief instant right at power-up/reset. Pressing the button during normal operation (which is all we ever do here) has no effect on that.

4. Writing the Code

As before, let’s build this up instead of pasting it all at once.

4.1 Skeleton

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_system.h"
#include "esp_event.h"
#include "esp_log.h"
#include "esp_ota_ops.h"
#include "esp_https_ota.h"
#include "esp_http_client.h"
#include "esp_wifi.h"
#include "esp_netif.h"
#include "esp_crt_bundle.h"
#include "nvs_flash.h"
#include "driver/gpio.h"
#include "led_strip.h"

#define BUTTON_GPIO       GPIO_NUM_0
#define LED_GPIO          27
/* Workshop fallback only. NEVER hardcode a Wi-Fi SSID and password in production;
   use provisioning (Assignment 3) so each device gets its own credentials. */
#define FALLBACK_SSID     "ESP32-WS"
#define FALLBACK_PASSWORD "ESP32-WS"

static const char *TAG = "ota_example";

// (A) LED helpers - reused from Assignment 2
// (B) Button GPIO setup
// (C) Wi-Fi event handler - also updates the LED
// (D) A task that polls the button and wakes up the OTA task
// (E) The OTA task itself - now waits for a notification instead of running immediately
// (F) app_main wires everything together

4.2 Part (A)-(B): LED and button setup

static led_strip_handle_t led_strip;
static TaskHandle_t s_ota_task_handle = NULL;

static void led_set_color(uint8_t r, uint8_t g, uint8_t b)
{
    /* Same two-step push as in Assignment 2: RAM first, then the wire. */
    led_strip_set_pixel(led_strip, 0, r, g, b);
    led_strip_refresh(led_strip);
}

static void configure_led(void)
{
    led_strip_config_t strip_config = {
        .strip_gpio_num = LED_GPIO, /* the built-in LED, same as in Assignment 2 */
        .max_leds = 1,
        .color_component_format = LED_STRIP_COLOR_COMPONENT_FMT_GRB,
        .led_model = LED_MODEL_WS2812,
        .flags.invert_out = false,
    };
    led_strip_rmt_config_t rmt_config = {
        .clk_src = RMT_CLK_SRC_DEFAULT,
        .resolution_hz = 10 * 1000 * 1000, /* 10 MHz: ~10x finer than the 1.25 us WS2812 bit */
        .mem_block_symbols = 0, /* 0 = let the driver pick the buffer size */
        .flags.with_dma = false, /* one LED is a few bytes; DMA is for long strips */
    };
    ESP_ERROR_CHECK(led_strip_new_rmt_device(&strip_config, &rmt_config, &led_strip)); /* create the driver */
    led_strip_clear(led_strip); /* all LEDs off */
}

static void configure_button(void)
{
    gpio_config_t io_conf = {
        .pin_bit_mask = 1ULL << BUTTON_GPIO, /* bit mask: only this pin */
        .mode = GPIO_MODE_INPUT,
        .pull_up_en = GPIO_PULLUP_DISABLE,
        .pull_down_en = GPIO_PULLDOWN_DISABLE, // we use an external pull-down resistor
    };
    ESP_ERROR_CHECK(gpio_config(&io_conf)); /* apply the pin settings */
}

We’ll use the LED as a status light with a simple color code we’ll build up through this assignment:

4.3 Part (C): the Wi-Fi event handler

static void event_handler(void* arg, esp_event_base_t event_base, int32_t event_id, void* event_data)
{
    if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_START) {
        esp_wifi_connect(); /* radio is on; start connecting */
    } else if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_DISCONNECTED) {
        ESP_LOGI(TAG, "Disconnected. Connecting to the AP again...");
        led_set_color(20, 20, 0); // yellow: (re)connecting
        esp_wifi_connect(); /* dropped; try again */
    } else if (event_base == IP_EVENT && event_id == IP_EVENT_STA_GOT_IP) {
        /* event_data carries the address DHCP gave us. */
        ip_event_got_ip_t* event = (ip_event_got_ip_t*) event_data;
        ESP_LOGI(TAG, "Connected with IP Address:" IPSTR, IP2STR(&event->ip_info.ip));
        ESP_LOGI(TAG, "Ready. Press the button to start the OTA update.");
        led_set_color(0, 0, 20); // blue: ready, waiting for the button
    }
}

This is the same Wi-Fi reconnect logic you’ve already seen, just extended to flip the LED to yellow or blue as the connection state changes.

4.4 Part (D): the button task

// Polls the button and wakes ota_task up on a press. A dedicated task keeps
// the debounce logic simple and out of the way of everything else.
static void button_task(void *pvParameter)
{
    bool was_pressed = false;
    while (1) {
        /* HIGH while held (the button ties the pin to 3V3). */
        bool pressed = gpio_get_level(BUTTON_GPIO) == 1;
        if (pressed && !was_pressed) {
            vTaskDelay(pdMS_TO_TICKS(50)); // simple debounce
            if (gpio_get_level(BUTTON_GPIO) == 1) {
                ESP_LOGI(TAG, "Button pressed - triggering OTA update");
                xTaskNotifyGive(s_ota_task_handle); /* wake the OTA task; it sleeps in ulTaskNotifyTake */
            }
        }
        was_pressed = pressed;
        vTaskDelay(pdMS_TO_TICKS(20)); /* poll every 20 ms */
    }
}

Rather than wiring up a GPIO interrupt (easy to get wrong when you’re just starting out), this task simply polls the pin every 20 ms. When it sees the signal go from low to high, it waits 50 ms and double-checks the pin is still high — a simple but effective way to ignore the tiny electrical bounces a mechanical switch produces — then wakes ota_task up with xTaskNotifyGive.

4.5 Part (E): the OTA task

/* Same as esp_https_ota(), but split in steps so we can log progress and the exact error. */
static esp_err_t run_ota(const esp_https_ota_config_t *ota_config)
{
    esp_https_ota_handle_t handle = NULL;
    esp_err_t err = esp_https_ota_begin(ota_config, &handle); /* connect, check the image header */
    if (err != ESP_OK) {
        ESP_LOGE(TAG, "Could not start the download: %s", esp_err_to_name(err));
        return err;
    }

    int next_report = 0;
    while ((err = esp_https_ota_perform(handle)) == ESP_ERR_HTTPS_OTA_IN_PROGRESS) {
        int read = esp_https_ota_get_image_len_read(handle);
        if (read >= next_report) { /* the server sends no size up front, so report kilobytes, not percent */
            ESP_LOGI(TAG, "Downloaded %d KB", read / 1024);
            next_report = read + 128 * 1024;
        }
    }
    if (err == ESP_OK && !esp_https_ota_is_complete_data_received(handle)) {
        err = ESP_ERR_INVALID_SIZE; /* connection ended early */
    }
    if (err != ESP_OK) {
        ESP_LOGE(TAG, "Download failed: %s", esp_err_to_name(err));
        esp_https_ota_abort(handle);
        return err;
    }
    return esp_https_ota_finish(handle); /* verify the image and switch the boot record */
}

static void ota_task(void *pvParameter)
{
    while (1) {
        // Block here until button_task wakes us up - no auto-update on boot anymore!
        ulTaskNotifyTake(pdTRUE, portMAX_DELAY);

        ESP_LOGI(TAG, "Starting OTA update");
        led_set_color(20, 20, 20); // white: downloading

        esp_netif_ip_info_t local = { 0 };
        /* Look up our own station interface and its address. */
        esp_netif_t *netif = esp_netif_get_handle_from_ifkey("WIFI_STA_DEF");
        /* No address yet (wrong network?) - don't even try the download. */
        if (netif == NULL || esp_netif_get_ip_info(netif, &local) != ESP_OK || local.ip.addr == 0) {
            ESP_LOGE(TAG, "This board has no IP. It must be on ESP32-WS before it can reach the server.");
            led_set_color(20, 0, 0);
            vTaskDelay(pdMS_TO_TICKS(3000));
            led_set_color(0, 0, 20);
            continue;
        }
        ESP_LOGI(TAG, "This board's IP is " IPSTR, IP2STR(&local.ip));

        esp_http_client_config_t config = {
            .url = "http://192.168.0.100/firmware.bin",
            .timeout_ms = 10000, /* give up on a silent server instead of hanging */
            // In production, serve this over HTTPS and check the server certificate:
            // .crt_bundle_attach = esp_crt_bundle_attach,
        };
        esp_https_ota_config_t ota_config = {
            .http_config = &config,
        };

        ESP_LOGI(TAG, "Attempting to download update from %s", config.url);
        /* Downloads into the inactive slot, logging progress, and flips the boot record. */
        esp_err_t ret = run_ota(&ota_config);
        if (ret == ESP_OK) {
            ESP_LOGI(TAG, "OTA succeeded, rebooting...");
            led_set_color(0, 20, 0); // green: success
            vTaskDelay(pdMS_TO_TICKS(1000)); /* let the green LED show before rebooting */
            esp_restart(); /* boot the new image */
        } else {
            ESP_LOGE(TAG, "Firmware upgrade failed: %s", esp_err_to_name(ret));
            led_set_color(20, 0, 0); // red: failed
            vTaskDelay(pdMS_TO_TICKS(3000));
            led_set_color(0, 0, 20); // back to blue: ready, feel free to try again
        }
    }
}

ulTaskNotifyTake(pdTRUE, portMAX_DELAY) sleeps until button_task notifies it, instead of starting the download on boot. Before downloading, the task checks its own IP address: with no address (board on the wrong network, or Wi-Fi still coming up) it flashes red and waits for the next press instead of failing in esp_https_ota(). The URL is the server project at examples/C5/assignment-04-ota-server: that board joins the same ESP32-WS network with the fixed address 192.168.0.100 and serves the image at http://192.168.0.100/firmware.bin. esp_https_ota() rejects plain HTTP unless CONFIG_ESP_HTTPS_OTA_ALLOW_HTTP is set. A product should serve the image over HTTPS and set .crt_bundle_attach instead.

run_ota() does what the one-line esp_https_ota() does, but in separate steps (begin, repeated perform, finish). That gives us two things the one-liner hides: a progress line every 128 KB (the server sends the file in chunks without announcing its size, so we count kilobytes instead of percent) and the exact error name when something fails, for example ESP_ERR_HTTP_CONNECT or ESP_ERR_HTTP_CONNECTION_CLOSED. .timeout_ms makes a silent server fail after 10 s instead of blocking the task.

4.6 Part (F): app_main

void app_main(void)
{
    ESP_LOGI(TAG, "Running firmware v1!");

    // Initialize NVS
    esp_err_t err = nvs_flash_init();
    /* Flash was erased or the layout changed; start NVS fresh. */
    if (err == ESP_ERR_NVS_NO_FREE_PAGES || err == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        err = nvs_flash_init();
    }
    ESP_ERROR_CHECK(err);

    configure_led();
    configure_button();
    led_set_color(20, 20, 0); // yellow: connecting

    ESP_ERROR_CHECK(esp_netif_init()); /* TCP/IP stack */
    ESP_ERROR_CHECK(esp_event_loop_create_default()); /* the loop Wi-Fi posts events to */
    esp_netif_create_default_wifi_sta(); /* default station interface, no IP yet */

    wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_wifi_init(&cfg));

    ESP_ERROR_CHECK(esp_event_handler_register(WIFI_EVENT, ESP_EVENT_ANY_ID, &event_handler, NULL));
    ESP_ERROR_CHECK(esp_event_handler_register(IP_EVENT, IP_EVENT_STA_GOT_IP, &event_handler, NULL));

    // Prefer credentials stored in NVS by the Assignment 3 provisioning step.
    // If that never happened, connect to the fallback network instead.
    /* Station mode must be set before esp_wifi_set_config(), or it fails with ESP_ERR_WIFI_MODE. */
    ESP_ERROR_CHECK(esp_wifi_set_mode(WIFI_MODE_STA));
    wifi_config_t wifi_config = { 0 };
    /* What did the driver restore from NVS? */
    ESP_ERROR_CHECK(esp_wifi_get_config(WIFI_IF_STA, &wifi_config));
    /* Empty: never provisioned (or NVS was erased). */
    if (wifi_config.sta.ssid[0] == '\0') {
        ESP_LOGW(TAG, "No Wi-Fi credentials in NVS, using fallback SSID \"%s\"", FALLBACK_SSID);
        wifi_config_t fallback = {
            .sta = {
                .ssid = FALLBACK_SSID,
                .password = FALLBACK_PASSWORD,
                .threshold.authmode = WIFI_AUTH_WPA2_PSK, // "ESP32-WS" is 8 characters, the WPA2 minimum
            },
        };
        ESP_ERROR_CHECK(esp_wifi_set_config(WIFI_IF_STA, &fallback));
    }

    ESP_ERROR_CHECK(esp_wifi_start());

    // Create the OTA task first so button_task has a valid handle to notify
    xTaskCreate(&ota_task, "ota_task", 8192, NULL, 5, &s_ota_task_handle); /* big stack: TLS needs room */
    xTaskCreate(&button_task, "button_task", 2048, NULL, 5, NULL); /* tiny loop, 2 KB is plenty */
}

esp_wifi_set_mode() has to come first: esp_wifi_set_config() fails with ESP_ERR_WIFI_MODE until the interface is in station mode. esp_wifi_get_config() reads the station config the Wi-Fi driver restored from NVS. A stored SSID is left as-is. An empty SSID means the board was never provisioned (or NVS was erased), so esp_wifi_set_config() installs FALLBACK_SSID and FALLBACK_PASSWORD — both "ESP32-WS" — and the driver saves that into NVS the same way a provisioned config is saved.

4.7 Complete code

The full file lives at examples/C5/assignment-04-ota, alongside the matching partitions.csv and idf_component.yml — grab it from there if you’d rather not type everything out, or use it to check your work.

5. Build, Flash, and Monitor

idf.py build flash monitor

Flash the server project onto a second board first. Watch the student board’s LED: yellow while it connects, then blue once Wi-Fi is up. It connects with the Assignment 3 credentials from NVS — or straight to the ESP32-WS workshop network when NVS is empty. Press the button — the LED turns white while the image downloads, then green and the board reboots into that image. The monitor should then show Running firmware v2!. If the server board is off, or this board ended up on a different network (e.g. credentials provisioned at home), the LED goes red and returns to blue. See step 6 for how that image was built and how to replace it.

Troubleshooting: the LED turned red. Check the monitor for the line printed just before it:

Monitor says Likely cause What to do
This board has no IP... Board is not connected to ESP32-WS, or Wi-Fi is still coming up (LED still yellow) Wait for the blue LED. If it stays yellow, the board probably holds credentials for another network (e.g. from Assignment 3 at home): run idf.py erase-flash and flash again
Could not start the download: ESP_ERR_HTTP_CONNECT (or a timeout) Server board is off, not yet on the network, or not at 192.168.0.100 Check the server’s monitor for the Firmware URL line; make sure there is only one ESP32-WS access point
Could not start the download: ESP_ERR_INVALID_ARG and “No option for server verification is enabled” CONFIG_ESP_HTTPS_OTA_ALLOW_HTTP is off Enable it (see step 2). If sdkconfig already exists, change it in menuconfig; editing only sdkconfig.defaults has no effect on an existing sdkconfig
Download failed: ESP_ERR_INVALID_SIZE (or another error after some progress lines) Connection dropped mid-download (weak signal, server reset) Press the button again
Download failed: ESP_ERR_INVALID_VERSION or ESP_ERR_OTA_VALIDATE_FAILED The file is not a valid app image for the ESP32-C5 Rebuild the image for esp32c5 and replace firmware.bin (step 6)
Fails right at the start with a message about the partition or image size The image does not fit the 1500K OTA slot Shrink the app or enlarge the slots in partitions.csv

6. Where the new firmware lives

If you are running this workshop with a tutor, they will instruct you where to find it and you can consider this chapter as purely informational. However, if you are running this workshop alone, continue.

The image the button downloads is already built. It lives in the server project as firmware.bin, and it is this same program with the log line changed to Running firmware v2!. Flash that project onto a second board:

cd examples/C5/assignment-04-ota-server
idf.py build flash monitor

The server joins the ESP32-WS workshop network with the fixed address 192.168.0.100 and serves the file at http://192.168.0.100/firmware.bin. The student board reuses the Assignment 3 credentials from NVS; only a board that was never provisioned falls back to ESP32-WS directly — which is the same network. If the board holds credentials for a different network (e.g. provisioned at home), re-run the Assignment 3 provisioning or erase flash before this demo, or it never reaches 192.168.0.100.

Replacing the image. Change the version line in the student project, build it, and copy build/assignment_04_ota.bin over firmware.bin in the server project. Flash the server again. The image has to be built for ESP32-C5 and must fit in the server’s fw partition (1536 KB).

Hosting it on the public internet instead. Put the .bin somewhere that already has HTTPS from a public certificate authority (a raw.githubusercontent.com link, or an S3/GCS object with public read). Uncomment .crt_bundle_attach = esp_crt_bundle_attach, drop CONFIG_ESP_HTTPS_OTA_ALLOW_HTTP, and point .url at that https:// address. A self-signed certificate is not in that bundle — embed it with .cert_pem if you need a local HTTPS server.

Next step

Let’s dive into an entirely different wireless technology: ESP-NOW! The LED you just set up is coming with us.

Assignment 5: ESP-NOW Chat Room
