Assignment 7: Low Power Core

---

ESP32-C6 has two cores: a high-power (HP) core for standard use and a low-power (LP) core to minimize consumption.

The second core is often called Ultra-Low-Power (ULP) core mainly in English and is designed primarily to handle simple tasks while the main (HP) core is in sleep mode, which significantly reduces electrical energy consumption. This function will certainly be appreciated by those who build battery-powered projects, where it’s not so much about performance, but rather about efficiency.

The ULP core can function independently of the HP core, where it can, for example, collect data from sensors and perform their basic processing, or control GPIO, all with absolutely minimal consumption and a 20 MHz clock, which is comparable to, for example, an Arduino UNO. If you are interested in a complete overview of what this core can do, visit the documentation on ULP LP-Core Coprocessor Programming.

(U)LP core

• 32-bit RISC-V core @20MHz
• 16KB LP SRAM
• RISC-V IMAC instruction set
• Act as a co-processor
• Access to peripherals, including
  • GPIO
  • UART
  • I2C

You can look at the DevCon23 talk Low-Power Features of ESP32-C6: Target Wake Time + LP Core, which covers some aspects of the LP core and TWT.

ULP pinout

The ULP core uses a specific set of pins. If you need to know the details, use the pin layout to know which pins will work with the LP core.

Practical work with LP core

In this demonstration, we will write code that blinks an LED. Once the “big” HP core will take care of the control, the second time the ULP core will do the same job. We will try to compare consumption at the same time.

For this assignment, we will create a new empty project. For more detailed instructions, visit chapter 1 (creating a project from the hello world example).

1. Create a main/ulp folder and a main.c file inside

#include <stdint.h>
#include <stdbool.h>
#include "ulp_lp_core.h"
#include "ulp_lp_core_utils.h"
#include "ulp_lp_core_gpio.h"
#include "ulp_lp_core_interrupts.h"

#define WAKEUP_PIN LP_IO_NUM_0
#define RED_PIN    LP_IO_NUM_4
#define GREEN_PIN  LP_IO_NUM_5

static uint32_t wakeup_count;
uint32_t start_toggle;

void LP_CORE_ISR_ATTR ulp_lp_core_lp_io_intr_handler(void)
{
    ulp_lp_core_gpio_clear_intr_status();
    wakeup_count++;
}

int main (void)
{
    /* Register interrupt for the wakeup pin */
    ulp_lp_core_intr_enable();
    ulp_lp_core_gpio_intr_enable(WAKEUP_PIN, LP_IO_INTR_POSEDGE);

    int level = 0;
    while (1) {
        /* Toggle the Red LED GPIO */
        ulp_lp_core_gpio_set_level(GREEN_PIN, 0);
        ulp_lp_core_gpio_set_level(RED_PIN, level);
        level = level ? 0 : 1;
        ulp_lp_core_delay_us(1000000);

        /* Wakeup the main processor after 4 toggles of the button */
        if (wakeup_count >= 4) {
            ulp_lp_core_gpio_set_level(RED_PIN, 0);
            ulp_lp_core_wakeup_main_processor();
            wakeup_count = 0;
        }
    }
    /* ulp_lp_core_halt() is called automatically when main exits */
    return 0;
}

In this code, we enable interrupts on the LP core using ulp_lp_core_intr_enable, while setting GPIO0 as an input pin, activated by a rising edge (signal transition from LOW to HIGH state). We use the ulp_lp_core_gpio_intr_enable function to connect the pin and interrupt. The Wake up counter will be handled by the interrupt handler ulp_lp_core_lp_io_intr_handler.

Now a loop for blinking and wake up counter starts. The value of our GPIO is set by the ulp_lp_core_gpio_set_level function. If the number of button presses is 4 or more, the HP core is started by the ulp_lp_core_wakeup_main_processor function.

1. Changes in main/CMakeLists.txt

In CMake we need to set the ULP application name, source files and more…

# Set usual component variables
set(app_sources "hello_world_main.c")
idf_component_register(SRCS ${app_sources}
                       REQUIRES ulp
                       WHOLE_ARCHIVE)
#
# ULP support additions to component CMakeLists.txt.
#
# 1. The ULP app name must be unique (if multiple components use ULP).
set(ulp_app_name ulp_${COMPONENT_NAME})
#
# 2. Specify all C and Assembly source files.
#    Files should be placed into a separate directory (in this case, ulp/),
#    which should not be added to COMPONENT_SRCS.
set(ulp_sources "ulp/main.c")
#
# 3. List all the component source files which include automatically
#    generated ULP export file, ${ulp_app_name}.h:
set(ulp_exp_dep_srcs ${app_sources})
#
# 4. Call function to build ULP binary and embed in project using the argument
#    values above.
ulp_embed_binary(${ulp_app_name} "${ulp_sources}" "${ulp_exp_dep_srcs}")

1. Code in main/hello_world_main.c for HP core

#include <stdio.h>
#include "esp_sleep.h"
#include "driver/gpio.h"
#include "driver/rtc_io.h"
#include "ulp_lp_core.h"
#include "ulp_main.h"
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"

extern const uint8_t ulp_main_bin_start[] asm("_binary_ulp_main_bin_start");
extern const uint8_t ulp_main_bin_end[]   asm("_binary_ulp_main_bin_end");

static void init_ulp_program(void);

#define WAKEUP_PIN  GPIO_NUM_0
#define RED_PIN     GPIO_NUM_4
#define GREEN_PIN   GPIO_NUM_5

void app_main(void)
{
    /* If user is using USB-serial-jtag then idf monitor needs some time to
    *  re-connect to the USB port. We wait 1 sec here to allow for it to make the reconnection
    *  before we print anything. Otherwise the chip will go back to sleep again before the user
    *  has time to monitor any output.
    */
    vTaskDelay(pdMS_TO_TICKS(1000));

    /* ULP caused wakeup */
    esp_sleep_wakeup_cause_t cause = esp_sleep_get_wakeup_cause();
    if (cause == ESP_SLEEP_WAKEUP_ULP) {
        printf("ULP woke up the main CPU! \n");
        ulp_lp_core_stop();
    }

    printf("In active mode\n");
    printf("Long press the wake button to put the chip to sleep and run the ULP\n");

    /* Initialize selected GPIOs */
    rtc_gpio_init(WAKEUP_PIN);
    rtc_gpio_set_direction(WAKEUP_PIN, RTC_GPIO_MODE_INPUT_ONLY);
    rtc_gpio_pulldown_dis(WAKEUP_PIN);
    rtc_gpio_pullup_dis(WAKEUP_PIN);

    rtc_gpio_init(RED_PIN);
    rtc_gpio_set_direction(RED_PIN, RTC_GPIO_MODE_OUTPUT_ONLY);
    rtc_gpio_pulldown_dis(RED_PIN);
    rtc_gpio_pullup_dis(RED_PIN);

    rtc_gpio_init(GREEN_PIN);
    rtc_gpio_set_direction(GREEN_PIN, RTC_GPIO_MODE_OUTPUT_ONLY);
    rtc_gpio_pulldown_dis(GREEN_PIN);
    rtc_gpio_pullup_dis(GREEN_PIN);

    int gpio_level = 0;
    int previous_gpio_level = 0;
    int cnt = 0;

    while (1) {
        /* Toggle the Green LED GPIO */
        rtc_gpio_set_level(RED_PIN, 0);
        rtc_gpio_set_level(GREEN_PIN, 1);
        vTaskDelay(pdMS_TO_TICKS(1000));
        rtc_gpio_set_level(GREEN_PIN, 0);
        vTaskDelay(pdMS_TO_TICKS(1000));

        /* Read the wakeup pin continuously */
        gpio_level = rtc_gpio_get_level(WAKEUP_PIN);
        if (gpio_level != previous_gpio_level) {
            previous_gpio_level = gpio_level;
            cnt++;
            if (cnt > 1) {
                rtc_gpio_set_level(GREEN_PIN, 0);
                cnt = 0;
                break;
                /* break and run the LP core code */
            }
        }
    }

    /* Load and run the ULP program */
    init_ulp_program();

    /* Go back to sleep, only the ULP will run */
    printf("Entering in deep sleep\n\n");
    printf("Press the wake button at least 3 or 4 times to wakeup the main CPU again\n");
    vTaskDelay(10);

    ESP_ERROR_CHECK( esp_sleep_enable_ulp_wakeup());

    esp_deep_sleep_start();
}

static void init_ulp_program(void)
{
    esp_err_t err = ulp_lp_core_load_binary(ulp_main_bin_start, (ulp_main_bin_end - ulp_main_bin_start));
    ESP_ERROR_CHECK(err);

    /* Start the program */
    ulp_lp_core_cfg_t cfg = {
        .wakeup_source = ULP_LP_CORE_WAKEUP_SOURCE_HP_CPU,
    };

    err = ulp_lp_core_run(&cfg);
    ESP_ERROR_CHECK(err);
}

1. Enabling LP core in configuration

To enable the LP core and be able to compile for it, we need to set the following configuration parameters in the project configuration. For example, by creating sdkconfig.defaults with the following content:

# Enable ULP
CONFIG_ULP_COPROC_ENABLED=y
CONFIG_ULP_COPROC_TYPE_LP_CORE=y
CONFIG_ULP_COPROC_RESERVE_MEM=4096
# Set log level to Warning to produce clean output
CONFIG_BOOTLOADER_LOG_LEVEL_WARN=y
CONFIG_BOOTLOADER_LOG_LEVEL=2
CONFIG_LOG_DEFAULT_LEVEL_WARN=y
CONFIG_LOG_DEFAULT_LEVEL=2

1. HW setup

For this example, you will also need 2 LEDs and one button connected to the following pins:

• Red LED -> GPIO4
• Green LED -> GPIO5

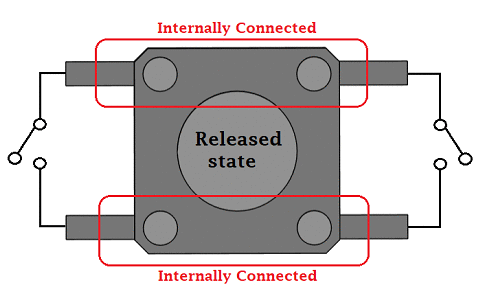

• Button (pull-down, active high) -> GPIO0. In other words, we connect one “side” of the button to 3.3V and the other to GPIO0. Additionally, we connect a resistor between GPIO0 and GND.

1. Build, flash, and monitor output from the board

Check that you are using the USB port labeled UART for uploading and subsequent monitoring of output. You won’t break anything by erasing the flash memory (command Erase Flash) before we upload this example.

What should happen…

After flashing, the green LED should start blinking every second with the following output:

In active mode
Long press the wake button to put the chip to sleep and run the ULP

If we press and hold the button for a long time, the LP core should be activated and the HP core should switch to deep sleep mode. The red LED starts blinking at a frequency of one second with the following output:

Entering in deep sleep
Press the wake button at least 3 or 4 times to wakeup the main CPU again

Waking up from deep sleep mode is done by clicking the button four times:

ULP woke up the main CPU!
In active mode
Long press the wake button to put the chip to sleep and run the ULP

For power consumption measurement, we use the exposed J5 connector and a suitable tool, such as JouleScope PPK2.

LED blinking with HP core

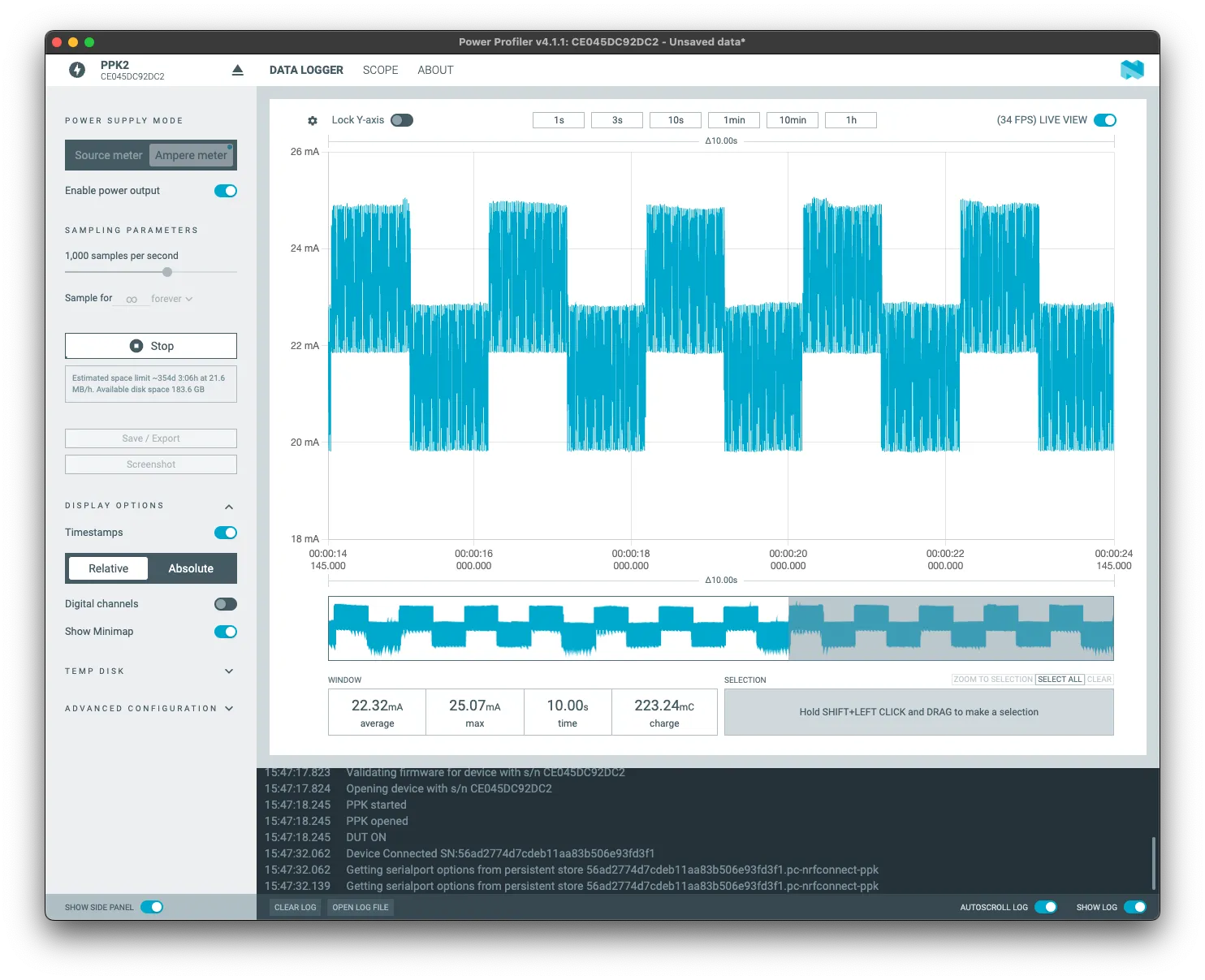

Using the “big” HP core, the average consumption over 10 seconds is approximately 22.32mA.

LED blinking with LP core

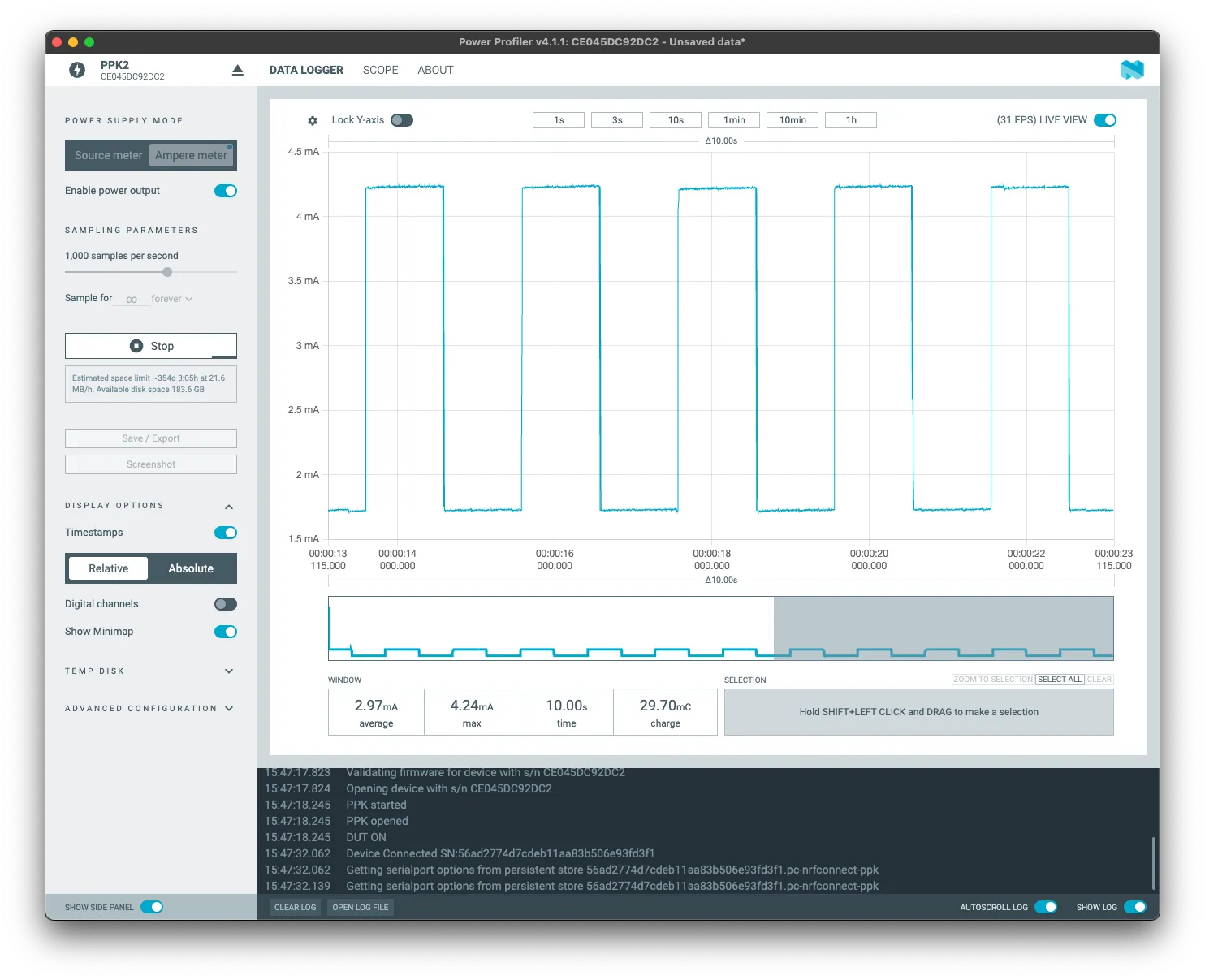

But if we transfer the application to the LP core, we immediately drop by an order of magnitude: 2.97mA.

When we switch cores, we achieve savings of (up to) 86.7% for the same task. However, the example is only indicative and the actual values will of course differ.

More examples with LP core (in English):

• LP Core simple example with GPIO Polling
• LP Core Pulse Counting Example
• LP-Core example with interrupt triggered from HP-Core
• LP I2C Example
• LP UART Examples
